Tumurly® Wind Turbines

Tumurly Wind Turbines

Egypt Power is delighted to introduce Tumurly Wind Turbines, a revolutionary solution in the realm of renewable energy. As partners, we bring you a synergy of quality, innovation and sustainability.

Engineered with precision, these turbines boast durability that stands firm against the challenges of diverse climates.

Moreover, Tumurly turbines operate silently. They are also tailored for commercial, residential, and agricultural applications. Tumurly turbines offer versatile solutions to meet unique energy needs of every sector.

Tumurly turbines are extremely durable and efficient. Their generators are equipped with aluminum cooling fans. When the wind exceeds 3m/s, the turbine will rotate freely by exceeding the holding torque. The turbines generate AC electricity to charge DC batteries, or feed an on-grid inverter to be connected to the grid.



Tumurly Turbines Are:

1. Energy cost saving from wind generated power.

2. No scheduled maintenance.

3. Designed to reliably operate in harsh, cold and hot climates.

4. Operation creates virtually no environmental impact.

5. Cost effective and financially viable.

Tumurly Turbo Series 600W

- Rated Power: 600W (at 15m/s)
- Type: 3 blades, horizontal
- Generator: Permanent magnet, brushless, gearless, maintenance free.
- Housing Material: Aluminum or Composit
- Operating Voltage: 0-90AC
- Current: 3-Phase-AC
- Total Turbine Mass: 15kg
- Max Noise: 50dB
- Life Expectancy: 30 Years
- Warranty: 2 years
- European Directives: Machinery Directive (2006/42/EC), Low Voltage Equipment Directive (2014/35/EU), Electromagnetic Compatibility Directive (2014/30/EU)
- Blade Diameter: 1.26m
- Blade Material: Polipropolen 5% Fiberglass
- Starting Wind Speed: 3m/s
- Charging Wind Speed: 4m/s
- European Standards: EN IEC 61400-2:2014, EN 60204-1:2018, EN ISO 12100:2010, EN IEC 61000-6-1:2019, EN IEC 61000-6-2:2019

Explanation

The new Tumurly Turbo 600 wind turbine is a high quality, extremely durable, highly efficient and superior performance wind turbine. Tumurly PMG generator which is developed by Tumurly engineers, converts the wind energy into electrical energy in the most efficient way. With its advanced aerodynamic structure and electrical power, it is the best turbine in its class. In case the turbine reaches over 3m/s, the turbine rotates freely and generates electricity, exceeding this holding torque. The maintenance free sliding contact guarantees good current flow so that the cable does not bend at the pole.


Key Benefits:

1. Energy cost savings from wind generated power.

2. No scheduled maintenance.

3. Designed to reliably operate in harsh, cold and hot climates.

4. Operation creates virtually no environmental impact.

5. Cost effective and financially viable.

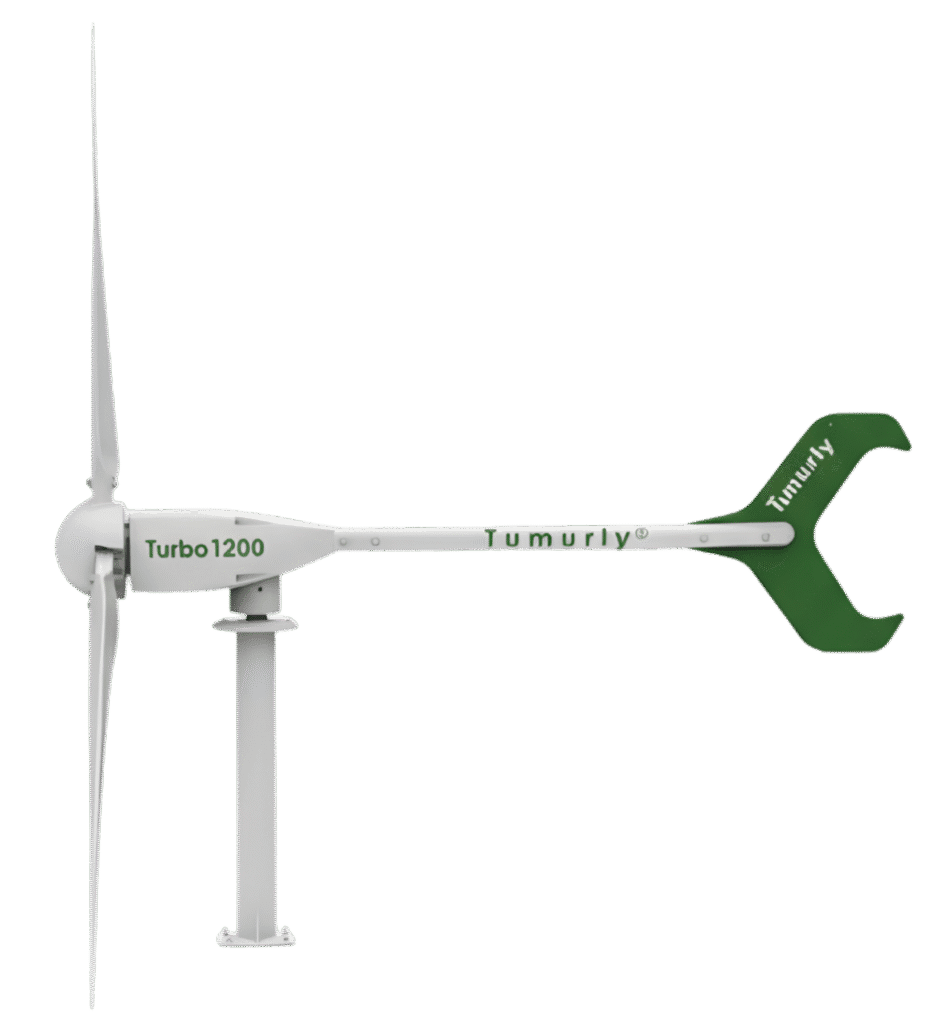

Tumurly Turbo Series 1200W

- Rated Power: 1200W (at 12m/s)
- Type: 3 blades, horizontal
- Generator: Permanent magnet, brushless, gearless, maintenance free.
- Housing Material: Aluminum or Composit
- Operating Voltage: 0-90AC
- Current: 3-Phase-AC
- Total Turbine Mass: 25kg
- Max Noise: 30dB
- Life Expectancy: 30 Years
- Warranty: 2 years
- European Directives: Machinery Directive (2006/42/EC), Low Voltage Equipment Directive (2014/35/EU), Electromagnetic Compatibility Directive (2014/30/EU)
- Blade Diameter: 1.880m
- Blade Material: 100% Fiberglass
- Starting Wind Speed: 3m/s
- Charging Wind Speed: 4m/s
- European Standards: EN IEC 61400-2:2014, EN 60204-1:2018, EN ISO 12100:2010, EN IEC 61000-6-1:2019, EN IEC 61000-6-2:2019

Explanation

The new Tumurly Turbo 1200 wind turbine is a high quality, extremely durable, highly efficient and superior performance wind turbine. Tumurly PMG generator which is developed by Tumurly engineers, converts the wind energy into electrical energy in the most efficient way. With its advanced aerodynamic structure and electrical power, it is the best turbine in its class. In case the turbine reaches over 3m/s, the turbine rotates freely and generates electricity, exceeding this holding torque. The maintenance free sliding contact guarantees good current flow so that the cable does not bend at the pole.


Key Benefits:

1. Energy cost savings from wind generated power.

2. No scheduled maintenance.

3. Designed to reliably operate in harsh, cold and hot climates.

4. Operation creates virtually no environmental impact.

5. Cost effective and financially viable.

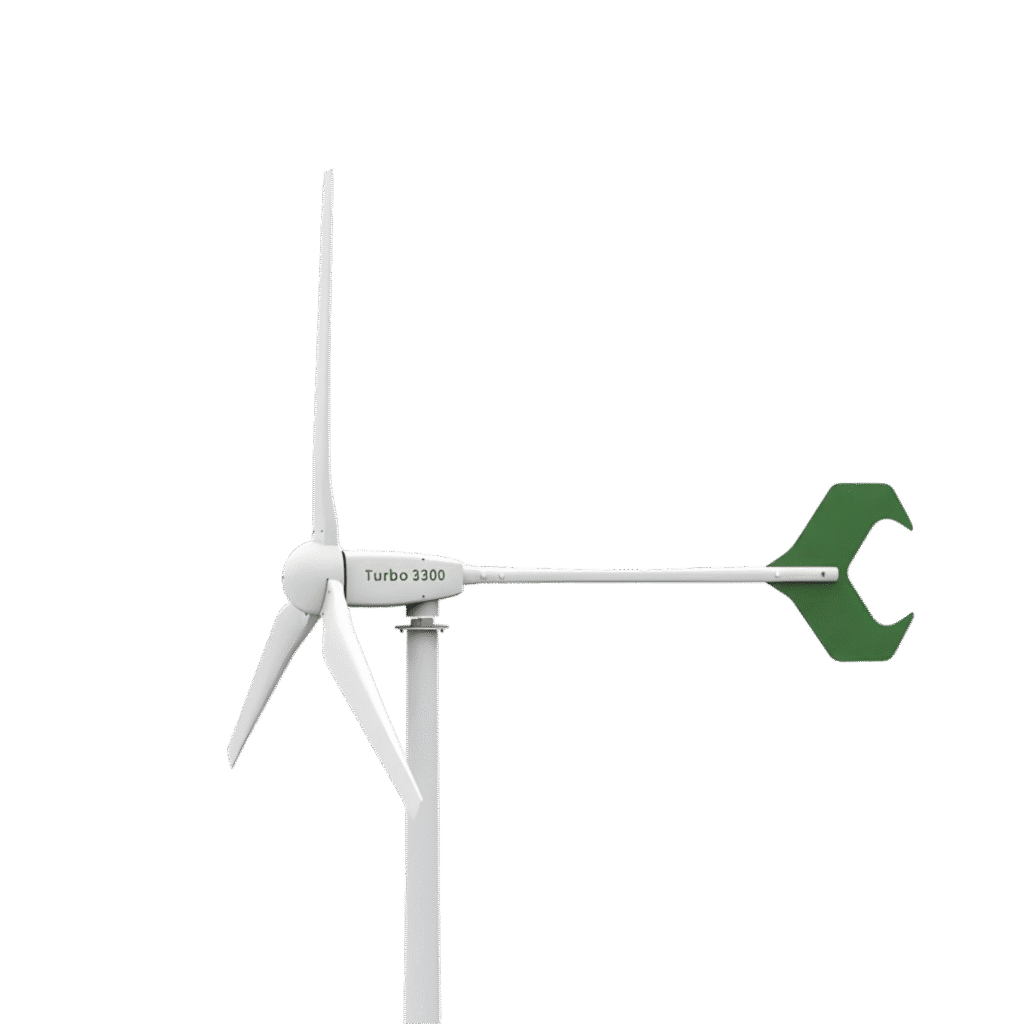

Tumurly Turbo Series 3300W

- Rated Power: 3300W (at 12m/s)
- Type: 3 blades, horizontal
- Generator: Permanent magnet, brushless, gearless, maintenance free.
- Housing Material: Aluminum or Composit
- Operating Voltage: 0-90AC
- Current: 3-Phase-AC
- Total Turbine Mass: 55kg
- Max Noise: 30dB
- Life Expectancy: 30 Years
- Warranty: 2 years
- European Directives: Machinery Directive (2006/42/EC), Low Voltage Equipment Directive (2014/35/EU), Electromagnetic Compatibility Directive (2014/30/EU)
- Blade Diameter: 2,457m
- Blade Material: 100% Fiberglass
- Starting Wind Speed: 3m/s
- Charging Wind Speed: 4m/s
- European Standards: EN IEC 61400-2:2014, EN 60204-1:2018, EN ISO 12100:2010, EN IEC 61000-6-1:2019, EN IEC 61000-6-2:2019

Explanation

The new Tumurly Turbo 3300 wind turbine is a high quality, extremely durable, highly efficient and superior performance wind turbine. Tumurly PMG generator which is developed by Tumurly engineers, converts the wind energy into electrical energy in the most efficient way. With its advanced aerodynamic structure and electrical power, it is the best turbine in its class. In case the turbine reaches over 3m/s, the turbine rotates freely and generates electricity, exceeding this holding torque. The maintenance free sliding contact guarantees good current flow so that the cable does not bend at the pole.


Key Benefits:

1. Energy cost savings from wind generated power.

2. No scheduled maintenance.

3. Designed to reliably operate in harsh, cold and hot climates.

4. Operation creates virtually no environmental impact.

5. Cost effective and financially viable.

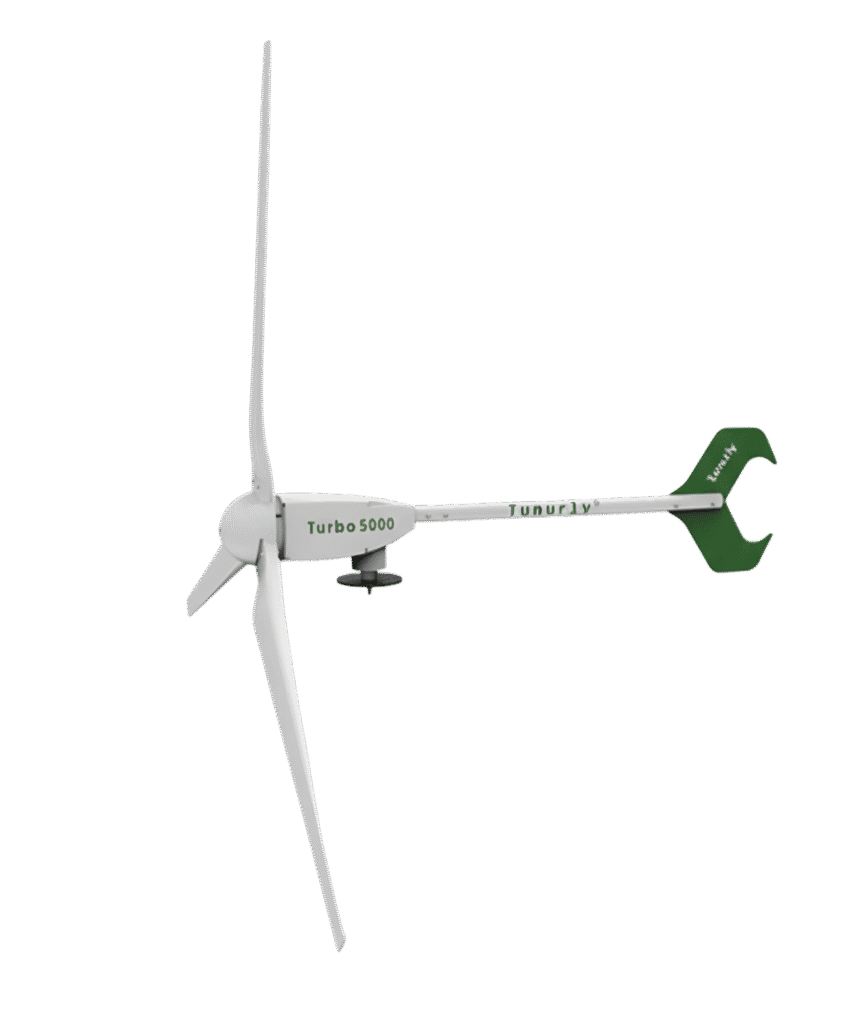

Tumurly Turbo Series 5000W

- Rated Power: 5000W (at 12m/s)
- Type: 3 blades, horizontal
- Generator: Permanent magnet, brushless, gearless, maintenance free.
- Housing Material: Aluminum or Composit
- Operating Voltage: 0-90AC
- Current: 3-Phase-AC
- Total Turbine Mass: 70kg
- Max Noise: 30dB
- Life Expectancy: 30 Years
- Warranty: 2 years
- European Directives: Machinery Directive (2006/42/EC), Low Voltage Equipment Directive (2014/35/EU), Electromagnetic Compatibility Directive (2014/30/EU)
- Blade Diameter: 2,813m
- Blade Material: 100% Fiberglass
- Starting Wind Speed: 3m/s
- Charging Wind Speed: 4m/s
- European Standards: EN IEC 61400-2:2014, EN 60204-1:2018, EN ISO 12100:2010, EN IEC 61000-6-1:2019, EN IEC 61000-6-2:2019
- Wind Tracking Direction: 360 degrees

Explanation

The new Tumurly Turbo 5000 wind turbine is a high quality, extremely durable, highly efficient and superior performance wind turbine. Tumurly PMG generator which is developed by Tumurly engineers, converts the wind energy into electrical energy in the most efficient way. With its advanced aerodynamic structure and electrical power, it is the best turbine in its class. Its specially developed wings that make no noise are made of 100% fiberglass. In case the turbine reaches over 3m/s, the turbine rotates freely and generates electricity, exceeding this holding torque. The maintenance free sliding contact guarantees good current flow so that the cable does not bend at the pole.


Key Benefits:

1. Energy cost savings from wind generated power.

2. No scheduled maintenance.

3. Designed to reliably operate in harsh, cold and hot climates.

4. Operation creates virtually no environmental impact.

5. Cost effective and financially viable.

Tumurly Vortex Series 1.0

- Rated Power: 1100W (at 12m/s)
- Type: 3 blades, vertical
- Generator: Permanent magnet, brushless, gearless, maintenance free.
- Housing Material: Aluminum
- Operating Voltage: 0-90AC
- Current: 3-Phase-AC
- Total Turbine Mass: 55kg
- Max Noise: 30dB
- Life Expectancy: 30 Years
- Warranty: 2 years
- European Directives: Machinery Directive (2006/42/EC), Low Voltage Equipment Directive (2014/35/EU), Electromagnetic Compatibility Directive (2014/30/EU)
- Blade Diameter: 1000mm
- Blade Material: Aluminum
- Starting Wind Speed: 3m/s
- European Standards: EN IEC 61400-2:2014, EN 60204-1:2018, EN ISO 12100:2010, EN IEC 61000-6-1:2019, EN IEC 61000-6-2:2019
- Wind Tracking Direction: 360 degrees

Explanation

The Anti-Scale System Vulcan S350 treats pipe diameters up to 14″ and have been designed to perfectly meet the requirements of industries. This programmable unit allows an individual adjustment according to the material and diameter of the pipes. Appliances and equipment which come in contact with hard water will have a longer life expectancy, when Vulcan is installed. Less time and effort is needed for cleaning, repairs and maintenance, etc.
